RGEC supplies high quality GD fenders for quays. A popular option as a bumper that protects marine assets during all sorts of forces upon contact. Though relatively uncommon, GD fenders are also available as a whole solid piece without the inner hollow part. GD fenders possess good energy absorption capabilities while showcasing an impressive durability.

A szálláslekérdezés elküldése

Csevegj most

A termék bemutatása

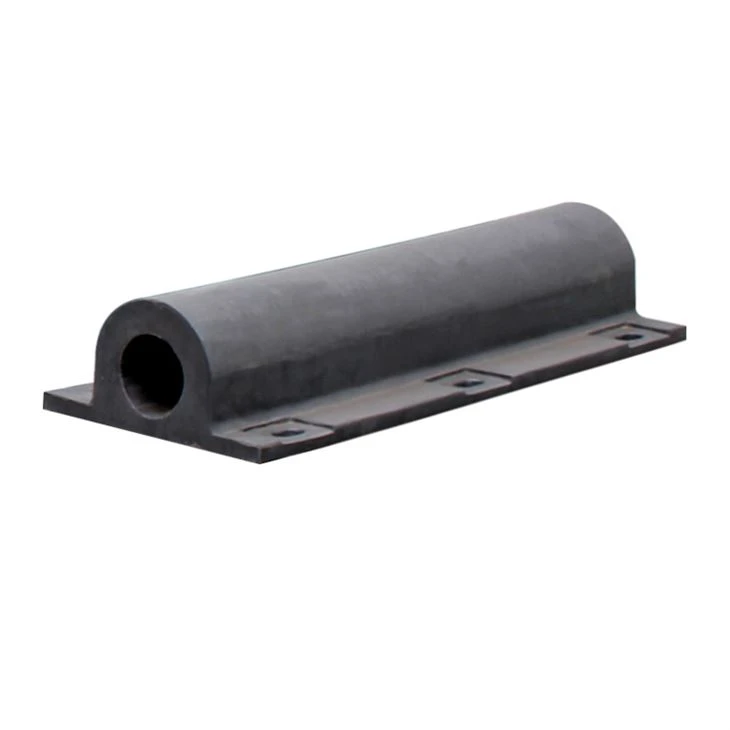

Type GD Rubber Fenders

GD fenders possess good energy absorption capabilities while showcasing an impressive durability. They are also very resistant to longitudinal and transverse shear force. Installation process is straightforward and simple. Ends can be beveled easily and customized sizes for GD fenders can be made according to customer's requirements.

Features

1. The reaction force and energy absorption of wing fender are higher

2. Compact size and expedient installation due to the"wing"design

3. Particularly applicable for framework quay, in addition the wing fender can be arranged and used with

other types of rubber fender

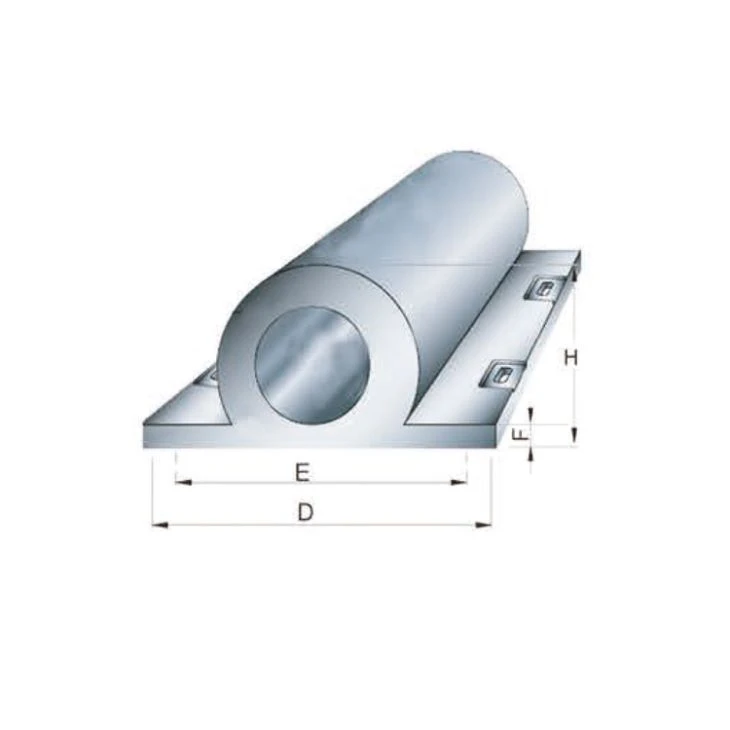

Specifications

GSD RUBBER FENDERS
Fender size	A	B	C	D	ØE	ØF	G	H	Flat bar	Bolt size	Weight
GSD100	100	100	50	45	30	15	90-130	200-300	40x5	M12	9.9
GSD150	150	150	70	65	40	20	110-150	250-300	50x8	M16	22.7
GSD165	165	125	80	60	40	20	110-150	250-300	60x8	M16	20.3
GSD200	200	150	90	65	50	25	130-180	300-400	70x10	M20	30.8
GSD200	200	200	90	95	50	25	130-180	300-400	70x10	M20	39.8
GSD250	250	200	120	95	60	30	140-200	350-450	90x12	M24	49.4
GSD250	250	250	120	120	60	30	140-200	350-450	90x12	M24	61.1
GSD300	300	250	140	115	60	30	140-200	350-450	100x12	M24	75
GSD300	300	300	125	135	60	30	140-200	350-450	100x12	M24	92
GSD400	400	400	200	200	75	35	140-200	350-450	150x15	M30	153
GSD500	500	500	250	250	90	45	160-230	400-500	180x20	M36	239
units: mm;kg/m
